BCAT Thermo lntercepter
Nominal Power: 3-15HP Max Condensing Temperature: 55°C.
Thermo Intercepter is an horizontal type air curtain that prevents air from entering and exiting a facility through openings where there are different temperatures on each side.
This Thermo Intercepter prevents warm air from flowing in and cold air from flowing out through openings in cold storage facilities where activities such as food production and distribution are taking place, solving problems such as rising storage temperatures and increased costs for cooling equipment.

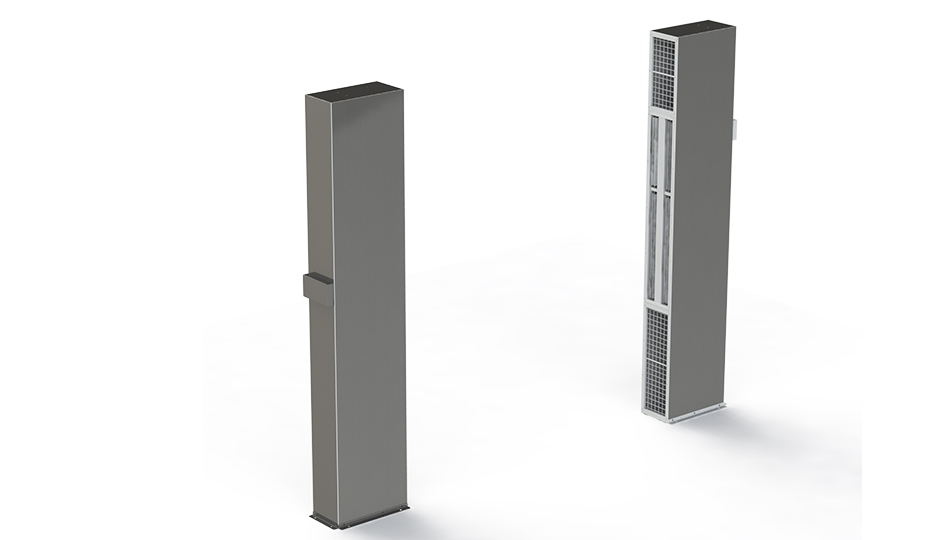

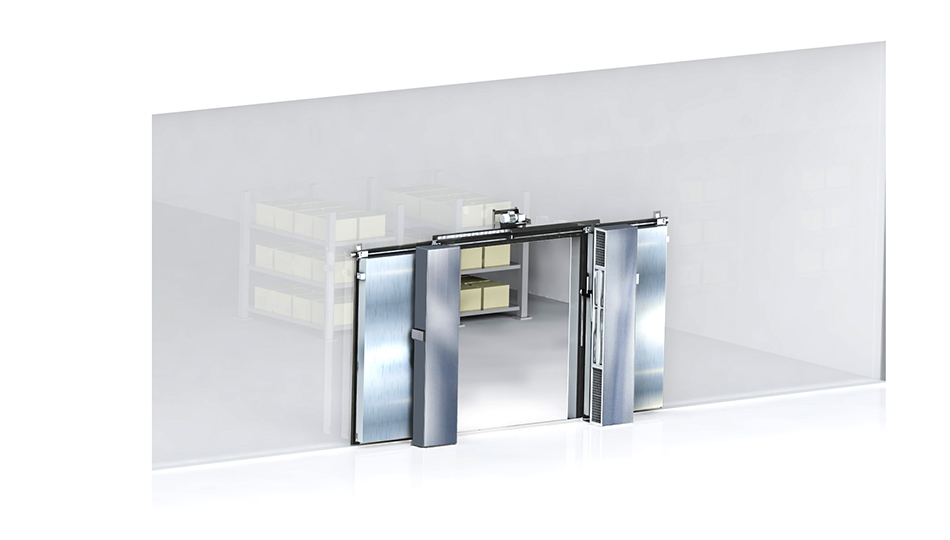

Thermo Intercepter consists of two parts installed on both sides of the logistic entrance and exit of the cold storage respectively. By regulating the transverse airflow formed by the left and right part of the equipment, a circulating air curtain is created, blocking airflow between the inside and outside of the cold storage, and saving the energy.
- DESCRIPTION
- FEATURES
- ADVANTAGES
Benefits at a Glance
● Block air convection inside and outside the warehouse, with high blocking efficiency
● Prevention of heat loss reduces power consumption
● Reduce defrosting times, reduce operation and maintenance costs
● Stable storage temperature ensures product quality
● Suppress fog overflow and improve safety
Application
Pass-through entrance and exit in cold storage
Entrance and exit of loading dock in cold storage
Entrance and exit of food processing factory with low temperature
Entrance and exit of meat processing factory
Entrance and exit of testing laboratory with high and low
Entrance and exit of inspection warehouse for the Customs
Specifications of thermo interceptor
Comparison with traditional air curtain machine
The traditional blocking device is a wall-mounted air curtain, with the air flow blowing from top to bottom to form a The invisible air curtain achieves a blocking effect, but due to the flow speed of the airflow to the middle and lower parts becomes smaller, unable to form an effective air curtain, and a large amount of hot air enters from the middle and lower part of the door opening In cold storage, the temperature inside the storage will rise and frost will form.
The heat flow interrupter arranges the maximum air outlet at the top and bottom of the equipment to prevent cold The outflow of air and the inflow of hot air have a good blocking effect.
Comparison with fast rolling shutter doors
Another blocking device is to install a fast rolling shutter door, which blocks the air flow through a physical door curtain.However, when goods come in and out, the rolling shutter door needs to be opened and closed frequently,resulting in low transportation efficiency.
The two air curtains formed above and below the heat flow interrupter have a blocking effect equivalent to that of a physical door curtain.Goods can be entered and exited at all times, which not only saves heat and energy, but also greatly improves transportation efficiency.
Temperature simulation diagram
Applicable Door Height: 300xNmm, N=7-12;
Applicable Door Width: below 3000mm;
Product Size :300x600xHmm,H=300xN.N=7-12;
Material: 304 Stainless Steel ( except for fans and electrical components) FanPower: 95W/50Hz,115W/Hz;
Applicable Temperature Range: -10~+45°C;Interception Effectiveness: 78%;
Electrical System: simultaneously open with door and delayed closure after thedoor, maximizing the blocking effect;
Comprehensive Energy Saving Rate: approximately 20%.
