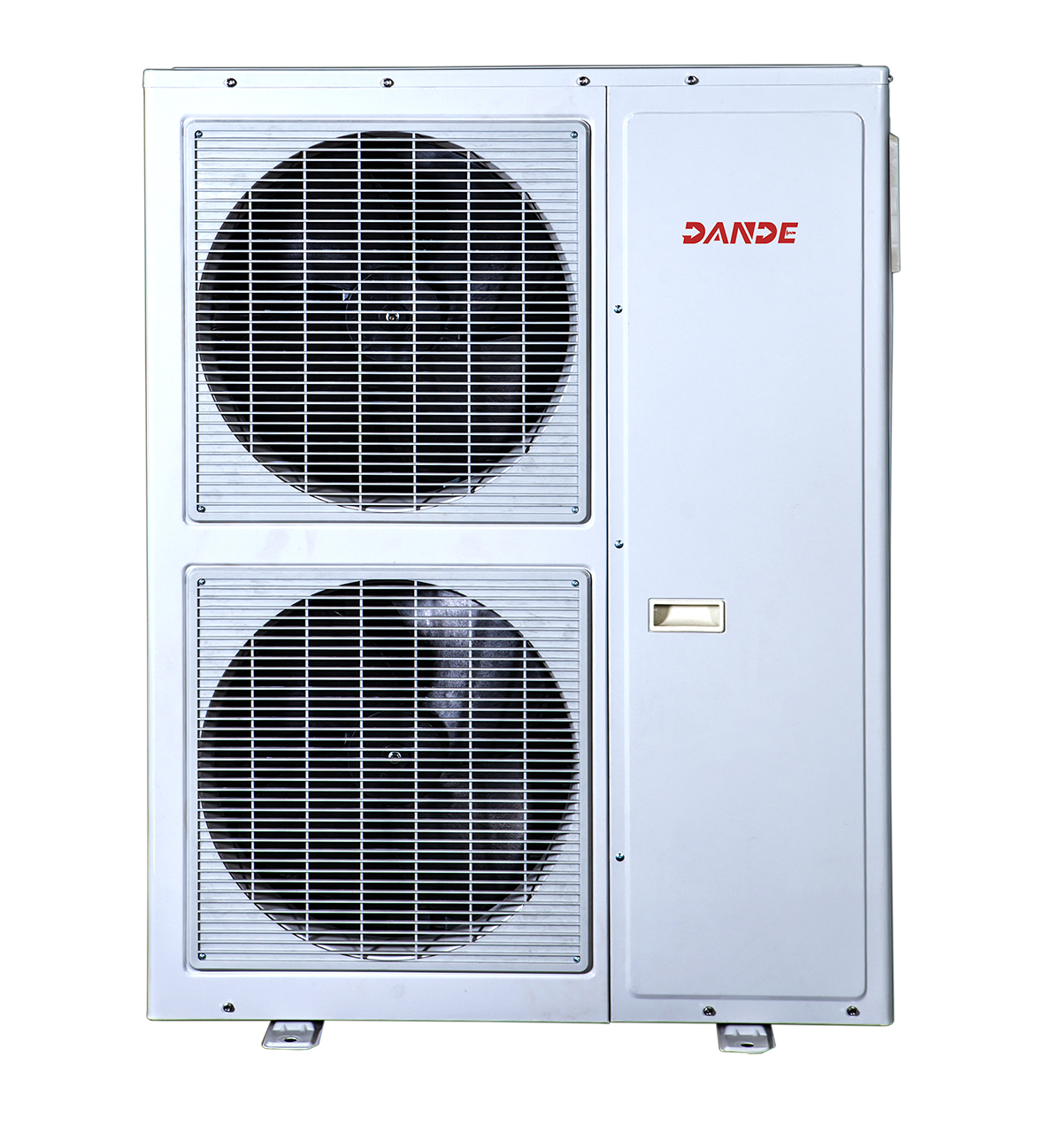

DRUS-H Medium Temperature Scroll Compressor Unit
Storage Temperature: +10°C to -10°C; Evaporation Temperature: -5°C to -15°C.
Dande DRUS-H medium temperature refrigeration scroll compressor adopts Copeland ZB series scroll compressor, R404A refrigerant pre-charged, suitable for storage temperature +10~-10℃; the unit rated power is 3-15HP, the maximum condensing temperature is 60℃, and the evaporation temperature is -5℃～-15℃.
- DESCRIPTION
- FEATURES
- OPTIONS
Product Performance Data
Compressor: Copeland medium temperature ZB series scroll compressor.
Refrigerant: R404A, pre-charged.
Storage Temperature: +10°C to -10°C.
Nominal Power: 3-15HP.
Max Condensing Temperature: 60°C.
Evaporation Temperature: -5°C to -15°C.
Benefits at a Glance
High-Performance Compressor System
Efficient Heat Exchange & Cooling
Compact & Space-Saving Design
Quiet & Reliable Operation
Flexible & Convenient Installation
Applications
Air-cooled box condensing units are used in cold storage design, cold storage construction and cold storage installation projects; such as cold storage, fresh-keeping storage, medical cold storage, food cold storage, cool storage and pre-cooling storage, etc.
High-Performance Compressor System
Equipped with Copeland ZB Series Scroll Compressor (Medium Temperature) for reliable and efficient operation.
Pre-charged with R404A refrigerant, suitable for a temperature range of +10°C to -10°C to meet diverse cooling needs.
Nominal power range: 3-15HP, offering flexibility for different applications.
Efficient Heat Exchange & Cooling
Features an air-cooled condenser with a fin-and-tube heat exchanger for enhanced cooling performance.
Copper tubes and aluminum fins provide a large face area, ensuring high heat exchange efficiency and prolonged service life.
Compact & Space-Saving Design
All-in-One Cabinet: The compressor, condenser, and essential components are integrated into a single compact unit, optimizing space utilization.
Aesthetic Appearance: Modern design ensures both functionality and visual appeal.
Quiet & Reliable Operation
External rotor fan enhances cooling efficiency while ensuring low noise operation and high reliability.
Optional intelligent controller optimizes performance for greater energy savings and precise cooling control.
Flexible & Convenient Installation
Outdoor-Ready: Can be installed directly outdoors without requiring additional sunshades, making it ideal for space-constrained areas.
Customizable Accessories: Available with optional controller box, intelligent controller, electronic/thermal expansion valve, crankshaft heater, and more to meet specific application needs.
Control methods: electric control cabinet/intelligent controller are available
Other accessories: electronic and mechanical expansion valves, compressor heating belts are available
