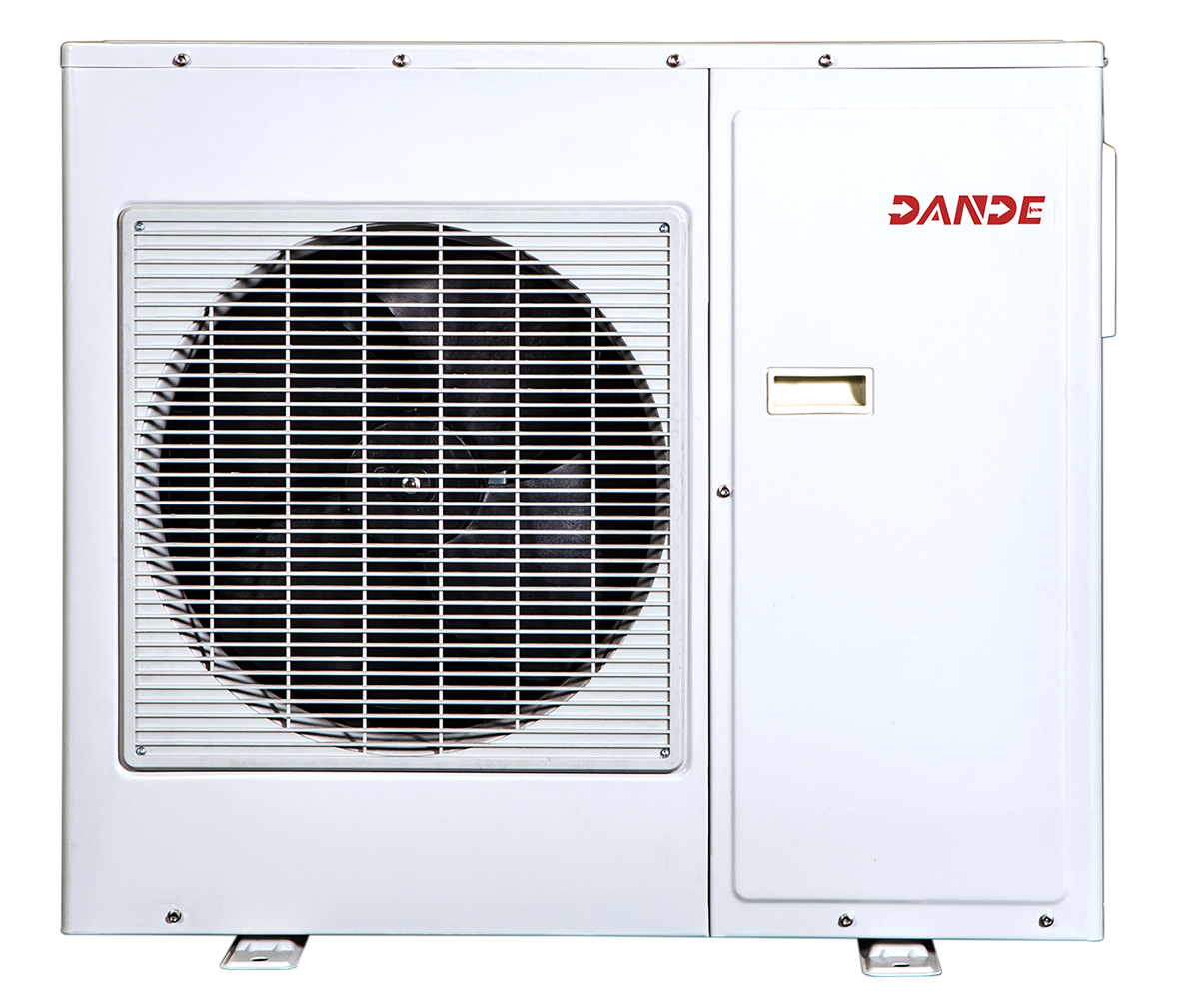

DRUS-L Low Temperature Scroll Compressor Unit
Storage Temperature: +5°C to -30°C; Evaporation Temperature: -20°C to -35°C
Dande DRUS-L Low Temperature Scroll Compressor Unit adopts Copeland medium-temperature ZSI/ZF/ZFI series scroll compressor, R404A refrigerant pre-charged, suitable for storage temperature +5~-30℃; the unit rated power is 3-15HP, the maximum condensing temperature is 55℃, and the R404A evaporation temperature is -20℃～-35℃.
- DESCRIPTION
- FEATURES
- OPTIONS
Product Performance Data
Compressor: Copeland medium-temperature ZSI/ZF/ZFI series scroll compressor.
Refrigerant: R404A, pre-charged.
Storage Temperature: +5°C to -30°C.
Nominal Power: 3-15HP
Max Condensing Temperature: 55°C.
Evaporation Temperature: -20°C to -35°C
Benefits at a Glance
High-Efficiency & Reliable Compressor
Advanced Heat Exchange & Cooling System
Compact & Space-Saving Design
Low-Noise & High-Reliability Operation
Flexible & Easy Installation
Applications
Perfect for Cold Storage: Air-cooled box-type condenser units are designed for use in cold storage systems, including freezer rooms and blast freezing chambers.
They are suitable for the design, construction, and installation of cold storage facilities.
High-Efficiency & Reliable Compressor
Equipped with Copeland ZSI/ZF/ZFI Scroll Compressors, designed for medium-temperature applications.
Uses R404A refrigerant, ensuring optimal cooling performance and energy efficiency.
Advanced Heat Exchange & Cooling System
Features an air-cooled condenser with a fin-and-tube heat exchanger for superior cooling efficiency.
Copper tubes and aluminum fins maximize the heat exchange surface area, enhancing performance and extending service life.
Compact & Space-Saving Design
All-in-One Cabinet: The compressor, condenser, and other components are housed within a single, compact unit, optimizing space utilization.
Aesthetic Appearance: The sleek and modern design ensures both functionality and visual appeal.
Low-Noise & High-Reliability Operation
External rotor fan provides efficient cooling while maintaining low operating noise, ensuring a quieter working environment.
Optional intelligent controller optimizes performance, improving energy efficiency and operational stability.
Flexible & Easy Installation
Outdoor-Ready: Designed for direct outdoor installation without requiring additional sunshades, making it ideal for limited-space environments.
Customizable Accessories: Available with optional controller box, intelligent controller, electronic/thermal expansion valve, crankshaft heater, and more to meet diverse operational needs.
Control methods: electric control cabinet/intelligent controller are available
Other accessories: electronic and mechanical expansion valves, compressor heating belts are available
